Dual Output Low ESR Cap. Low-Dropout 300mA Linear Regulator

FEATURES
Up to 300mA Output Current for Each LDO
Low Quiescent Current : 50?A (Vout1 and Vout2 Enable Mode)
Low Dropout : 200mV at 300mA Load Current and 3.3V Output Voltage
High PSRR : 70dB at 1kHz
Independent Shutdown Controls
Current Limit and Thermal Protection
Tiny SOT-23-6, DFN 6L-2X2 Package

APPLICATIONS
Cellular Phones
PDAs
Digital Still Cameras
Portable Consumer Equipments

DESCRIPTION
The AIC1952 is a dual output linear regulator in a tiny SOT-23-6, DFN 6L-2X2 package. It is optimized for low ESR ceramic capacitors operation and up to 300mA continuous current on each output.

The AIC1952 offers high precision output voltage of ∮2%. At 300mA load current, a 200mV dropout is performed when output voltage is equal to 3.3V. The quality of low quiescent current and low dropout voltage makes this device ideal for battery power applications. The high ripple rejection and low noise of the AIC1952 provide enhanced performances for critical applications such as cellular phones, and PDAs.

The AIC1952 includes current limit and thermal shutdown protection. Each of the output is controlled independently.

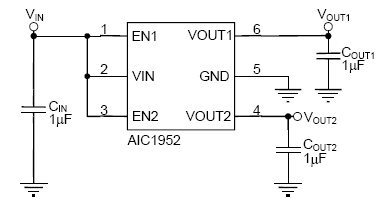

TYPICAL APPLICATION
