UCC28600是一款PWM控制器,具有先进的能量特性,可满足严格的全球能效要求。
UCC28600集成了内置功能先进的节能功能,具有高级保护功能,为节能电源提供经济高效的解决方案。 UCC28600采用频率折返和绿色模式工作,可降低轻载和空载条件下的开关损耗。

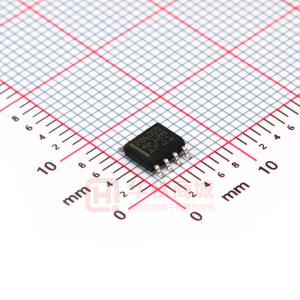

UCC28600采用8引脚SOIC封装。工作结温范围为-40°C至+ 105°C。
UCC28600设计计算器(SLVC104)位于UCC28600产品文件夹的工具和软件部分,提供用户交互式迭代为优化设计选择推荐元件值的过程。
Control Method |
Duty Cycle (Max) (%) |
Frequency (Max) (kHz) |
UVLO Thresholds On/Off (V) |
Features |
Operating Temperature Range (C) |
Package Group |
Rating |
Package Size: mm2:W x L (PKG) |
UCC28600 | LM5023 | UCC28610 | UCC28704 | UCC28740 | UCC28780 |
---|---|---|---|---|---|
Current | Current | Current | Current | Current | Current |
99 | 100 | 100 | 99 | 99 | 99 |
130 | 130 | 130 | 85 | 100 | 1000 |
10.3/9.3 | 12.8/7.5 | 10.2/8 | 21/7.7 | 21/7.75 | 17.5/10 |
SSR QR/TM Error Amplifier Green Mode Light Load Efficiency Power Delivery Compatible Motor Drive Compatible Audio Compatible | SSR HV Start-up Configurable QR/TM Green Mode Light Load Efficiency Power Delivery Compatible | DCM SSR HV Start-up Soft Switching Power Delivery Compatible Audio Compatible Motor Drive Compatible | PSR HV Start-up Configurable Fixed CBC NTC Configurable CV/CC Control DCM USB Type-C Compatible IoT Compatible Power Delivery Compatible | SSR HV Start-up CV/CC Control DCM Smart Meters Compatible IoT Compatible USB Type-C Compatible Power Delivery Compatible | Zero Voltage Switching Active Clamp Flyback |
-40 to 105 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 |
SOIC | VSSOP | PDIP SOIC | SOT-23 | SOIC | SOIC WQFN |
Catalog | Catalog | Catalog | Catalog | Catalog | Catalog |
8SOIC: 29 mm2: 6 x 4.9(SOIC) | 8VSSOP: 15 mm2: 4.9 x 3(VSSOP) | See datasheet (PDIP) 8SOIC: 29 mm2: 6 x 4.9(SOIC) | 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 7SOIC: 29 mm2: 6 x 4.9(SOIC) | 16SOIC: 59 mm2: 6 x 9.9(SOIC) 16WQFN: 9 mm2: 3 x 3(WQFN) |
