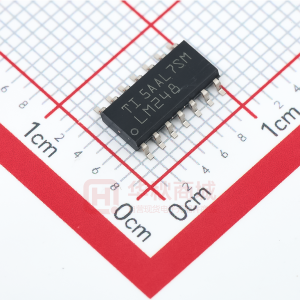

LM248 四路运算放大器

描述

LM148，LM248和LM348是四路独立的高增益内部补偿运算放大器，其工作特性与μA741类似。这些放大器的电源电流消耗和输入偏置电压较低，偏置电流远低于μA741。


Number of Channels (#)
Total Supply Voltage (Min) (+5V=5, +/-5V=10)
Total Supply Voltage (Max) (+5V=5, +/-5V=10)
GBW (Typ) (MHz)
Slew Rate (Typ) (V/us)
Rail-to-Rail
Vos (Offset Voltage @ 25C) (Max) (mV)
Iq per channel (Typ) (mA)
Vn at 1kHz (Typ) (nV/rtHz)
Rating
Operating Temperature Range (C)
Package Group
Package Size: mm2:W x L (PKG)
Offset Drift (Typ) (uV/C)
Features
Input Bias Current (Max) (pA)
CMRR (Typ) (dB)
Output Current (Typ) (mA)
Architecture

LM248	LM148	LM2902	LM324	LM348
4	4	4	4	4
8	8	3	3	8
36	36	26	32	36
1	1	1.2	1.2	1
0.5	0.5	0.5	0.5	0.5
No		In to V-	In to V-	No
6	5	7	7	6
0.6	0.6	0.175	0.175	0.6
60	60	35	35	60
Catalog	Military	Catalog	Catalog	Catalog
-25 to 85	-55 to 125	-40 to 125	0 to 70	0 to 70
PDIP SOIC	CDIP LCCC	PDIP SO SOIC TSSOP	PDIP SO SOIC TSSOP	PDIP SO SOIC
See datasheet (PDIP) 14SOIC: 52 mm2: 6 x 8.65(SOIC)	See datasheet (CDIP) 20LCCC: 79 mm2: 8.89 x 8.89(LCCC)	See datasheet (PDIP) 14SO: 80 mm2: 7.8 x 10.2(SO) 14SOIC: 52 mm2: 6 x 8.65(SOIC) 14TSSOP: 32 mm2: 6.4 x 5(TSSOP)	See datasheet (PDIP) 14SO: 80 mm2: 7.8 x 10.2(SO) 14SOIC: 52 mm2: 6 x 8.65(SOIC) 14TSSOP: 32 mm2: 6.4 x 5(TSSOP)	See datasheet (PDIP) 14SO: 80 mm2: 7.8 x 10.2(SO) 14SOIC: 52 mm2: 6 x 8.65(SOIC)
15	15			15
N/A	N/A	Standard Amps	Standard Amps	N/A
200000		250000	250000	200000
90	90	80	80	90
25	25	40	40	25
Bipolar	Bipolar	Bipolar	Bipolar	Bipolar
