数据: 具有 Eco-Mode™ 的 TPS54560 4.5V 至 60V 输入,5A 降压直流/直流转换器 数据表 (Rev. C)
TPS54560是一款配有集成型高侧MOSFET的60V,5A降压稳压器。按照ISO 7637标准,此器件能够耐受的抛负载脉冲高达65V。电流模式控制提供了简单的外部补偿和灵活的组件选择。一个低纹波脉冲跳跃模式将无负载时的电源电流减小至146μA。当启用引脚被拉至低电平时,关断电源电流被减少至2μA。
欠压闭锁在内部设定为4.3V,但可用使能引脚将之提高。输出电压启动斜升由内部控制以提供一个受控制启动并且消除过冲。
宽开关频率范围可实现对效率或者外部组件尺寸的优化。输出电流是受限的逐周期电流。频率折返和热关断在过载条件下保护内部和外部组件。

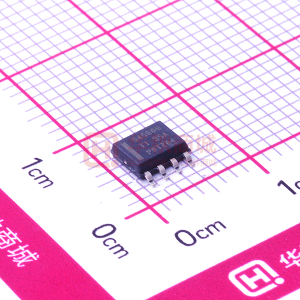

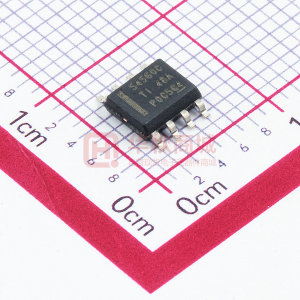

TPS54560可提供8引脚热增强型HSOP PowerPAD™封装。
所有商标均为其所有各自所有者。
Vin (Min) (V) |
Vin (Max) (V) |
Vout (Min) (V) |
Vout (Max) (V) |
Iout (Max) (A) |
Regulated Outputs (#) |
Switching Frequency (Min) (kHz) |
Switching Frequency (Max) (kHz) |
Iq (Typ) (mA) |
Features |
Control Mode |
Duty Cycle (Max) (%) |
Operating Temperature Range (C) |
Rating |
Package Group |
TPS54560 | TPS54060A | TPS54160A | TPS54361 | TPS54361-Q1 | TPS54561 |
---|---|---|---|---|---|
4.5 | 3.5 | 3.5 | 4.5 | 4.5 | 4.5 |
60 | 60 | 60 | 60 | 60 | 60 |
0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
58.8 | 58 | 58 | 59 | 59 | 59 |
5 | 0.5 | 1.5 | 3.5 | 3.5 | 5 |
1 | 1 | 1 | 1 | 1 | 1 |
100 | 100 | 100 | 100 | 100 | 100 |
2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
0.146 | 0.116 | 0.116 | 0.152 | 0.152 | 0.152 |
Enable Frequency Synchronization Light Load Efficiency UVLO Adjustable | Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable | Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable | Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable | Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable | Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable |
Current Mode | Current Mode | Current Mode | Current Mode | Current Mode | Current Mode |
98 | 98 | 98 | 98 | 98 | 98 |
-40 to 125 | -40 to 125 | -40 to 125 | -40 to 85 | -40 to 125 | -40 to 125 |
Catalog | Catalog | Catalog | Catalog | Automotive | Catalog |
SO PowerPAD | MSOP-PowerPAD VSON | MSOP-PowerPAD VSON | WSON | WSON | WSON |
