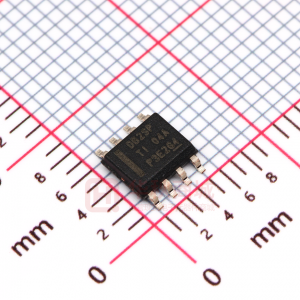

数据： LMR14020 SIMPLE SWITCHER® 40V 2A、2.2MHz 降压转换器，具有 40μA IQ 数据表 (Rev. A)
LMR14020器件是一款具有集成型高侧MOSFET的40V，2A降压稳压器。该器件具有4V至40V的宽输入电压范围，适用于从工业到汽车各类应用中非稳压电源的电源调节。该稳压器在休眠模式下的静态电流为40μA，非常适合电池供电类系统。并且在关断模式下具有1μA的超低电流，可进一步延长电池使用寿命。该稳压器的可调开关频率范围较宽，这使得效率或外部元件尺寸能够得到优化。内部环路补偿意味着用户不用承担设计环路补偿组件的脱水工作。并且还能够以最大限度减少器件的外部元件数。精密使能输入简化了稳压器控制和系统电源排序。此外，该器件还内置多种保护特性：逐周期电流限制保护，应对功耗过大的热感测和热关断保护，以及输出过压保护。
| Vin (Min) (V) |
| Vin (Max) (V) |
| Vout (Min) (V) |
| Vout (Max) (V) |
| Iout (Max) (A) |
| Regulated Outputs (#) |
| Switching Frequency (Min) (kHz) |
| Switching Frequency (Max) (kHz) |
| Iq (Typ) (mA) |
| Features |
| Control Mode |
| Duty Cycle (Max) (%) |
| Operating Temperature Range (C) |
| Rating |
| Package Group |
| LMR14020 | LMR14006 | LMR14010A | LMR14030 | LMR14050 | TPS560430 |
|---|---|---|---|---|---|
| 4 | 4 | 4 | 4 | 4 | 4 |
| 40 | 40 | 40 | 40 | 40 | 36 |
| 1 | 0.8 | 0.8 | 1 | 1 | 1 |
| 36 | 30 | 30 | 36 | 36 | 24 |
| 2 | 0.6 | 1 | 3.5 | 5 | 0.6 |
| 1 | 1 | 1 | 1 | 1 | 1 |
| 200 | 1100 | 550 | 200 | 200 | 1100 |
| 2500 | 2100 | 850 | 2500 | 2500 | 2100 |
| 0.04 | 0.028 | 0.03 | 0.04 | 0.04 | 0.08 |
| Enable Frequency Synchronization Light Load Efficiency Power Good Pre-Bias Start-Up Tracking UVLO Adjustable | Enable Light Load Efficiency Pre-Bias Start-Up UVLO Adjustable | Enable Light Load Efficiency Over Current Protection Pre-Bias Start-Up UVLO Fixed | Enable Frequency Synchronization Light Load Efficiency Power Good Pre-Bias Start-Up Tracking UVLO Adjustable | Enable Frequency Synchronization Light Load Efficiency Power Good Pre-Bias Start-Up Tracking UVLO Adjustable | Enable Forced Pulse Width Modulation (FPWM) Mode Light Load Efficiency Over Current Protection Pre-Bias Start-Up Synchronous Rectification Tracking UVLO Adjustable |
| Current Mode | Current Mode | Current Mode | Current Mode | Current Mode | Current Mode |
| 98 | 97 | 96 | 98 | 98 | 98 |
| -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 |
| Catalog | Catalog | Catalog | Catalog | Catalog | Catalog |
| SO PowerPAD | SOT-23-THIN | SOT-23-THIN | SO PowerPAD | SO PowerPAD | SOT-23 |
