数据: LMR14030-Q1 SIMPLE SWITCHER® 40V、3.5A 降压转换器(IQ 为 40µA) 数据表 (Rev. A)
LMR14030-Q1器件是一款集成高侧金属氧化物半导体场效应应晶体管(MOSFET)的40V,3.5A降压稳压器。器件的宽输入电压范围为4V至40V,适用于调节从工业到汽车等各类应用中的非稳压电源。其扩展系列产品能够以引脚到引脚兼容封装提供2 A和5A电流选项,其中包括LMR14020-Q1和LMR14050-Q1。该稳压器在休眠模式下的静态电流为40μA,非常适合电池供电类系统。并且在断断模式下具有1μA的超低电流,可进一步延长电池使用寿命。该稳压器的可调开关频率范围较宽,这使得效率或外部元件尺寸能够得到优化。内部环路补偿意味着用户不用承担设计环路补偿组件的枯燥工作。并且还能够以最大限度减少器件的外部元件数。精密使能输入简化了稳压器控制和系统电源排序。此外,该器件还内置多种保护功能:逐周期限流保护,应对耗尽大的热感测和热关断保护以及输出过压保护。

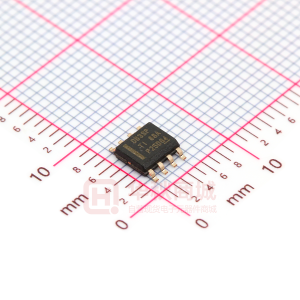

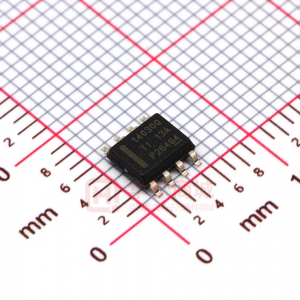

LMR14030-Q1采用带有外露焊盘的8引脚HSOIC或10引脚WSON封装,用于实现低热阻。
Vin (Min) (V) |
Vin (Max) (V) |
Vout (Min) (V) |
Vout (Max) (V) |
Iout (Max) (A) |
Regulated Outputs (#) |
Switching Frequency (Min) (kHz) |
Switching Frequency (Max) (kHz) |
Iq (Typ) (mA) |
Features |
Control Mode |
Duty Cycle (Max) (%) |
Operating Temperature Range (C) |
Rating |
Package Group |
LMR14030-Q1 | LM22670-Q1 | LM26003-Q1 | LM43603-Q1 | LM5576-Q1 | LMR16006Y-Q1 | LMR23610-Q1 | LMR23625-Q1 | LMR23630-Q1 |
---|---|---|---|---|---|---|---|---|
4 | 4.5 | 3 | 3.5 | 6 | 4 | 4 | 4 | 4 |
40 | 42 | 38 | 36 | 75 | 40 | 36 | 36 | 36 |
1 | 1.285 | 1.25 | 1 | 1.23 | 0.8 | 1 | 1 | 1 |
30 | 37 | 35 | 28 | 70 | 36 | 34 | 34 | 34 |
3.5 | 3 | 3 | 3 | 3 | 0.6 | 1 | 2.5 | 3 |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
200 | 200 | 150 | 200 | 50 | 700 | 200 | 200 | 200 |
2500 | 1000 | 500 | 2200 | 500 | 2100 | 2200 | 2200 | 2200 |
0.04 | 3.4 | 0.04 | 0.027 | 1 | 0.028 | 0.075 | 0.075 | 0.075 |
Enable Frequency Synchronization Light Load Efficiency Power Good Pre-Bias Start-Up Spread Spectrum Tracking UVLO Adjustable | Enable | Enable Light Load Efficiency Power Good Pre-Bias Start-Up | Enable Frequency Synchronization Light Load Efficiency Power Good Synchronous Rectification Tracking | Enable | Enable Light Load Efficiency Pre-Bias Start-Up UVLO Adjustable | Enable Frequency Synchronization Light Load Efficiency Synchronous Rectification | Enable Frequency Synchronization Light Load Efficiency Synchronous Rectification | Enable Frequency Synchronization Light Load Efficiency Synchronous Rectification |
Current Mode | Voltage Mode | Current Mode | Current Mode | Current Mode | Current Mode | Current Mode | Current Mode | Current Mode |
98 | 90 | 98 | 99 | 95 | 97 | 99 | 99 | 99 |
-40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 |
Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
SO PowerPAD WSON | SO PowerPAD TO-263 | HTSSOP | HTSSOP | HTSSOP | SOT-23-THIN | SO PowerPAD | SO PowerPAD SON | SO PowerPAD SON |
